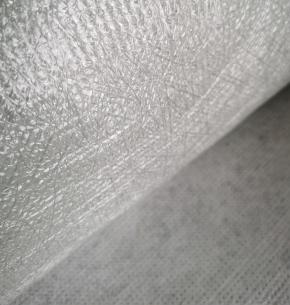

Surface Veil Stitched Combo Mat (EMKP) is a composite reinforcement that integrates a surface veil with chopped strand mat or stitched fiberglass layers. The surface veil ensures a smooth, high-quality finish, while the inner layers provide strength, durability, and excellent resin permeability.
This structure delivers both aesthetic appeal and enhanced mechanical performance, making EMKP ideal for RTM, Hand Lay-up, and other molding processes. It is widely used in applications such as FRP panels, water tanks, sanitary ware, and corrosion-resistant components in the marine, construction, and industrial sectors.
Swipe or wait — images change automatically.
| Specification | Total weight (gsm) | Base Fabrics Type | Base Fabric(gsm) | Surface Mat Type | Surface Mat(gsm) | Stitching Yarn(gsm) |
| EMK300/P60 | 370 | Stitched Mat(EMK) | 300 | Polyester vell | 60 | 10 |
| EMK450/F45 | 505 | Stitched Mat(EMK) | 450 | Fiberglass vell | 45 | 10 |
| LT1440/P45 | 1495 | Bidirectional Glass Fiber Fabric(LT) | 144 | Polyester vell | 45 | 10 |
| WR600/P45 | 655 | Woven Roving(WR) | 600 | Polyester vell | 45 | 10 |
| CF450/180/450/P40 | 1130 | Flow Medium(CF) | 1080 | Polyester vell | 40 | 10 |
The Surface Veil Stitched Combo Mat (EMKP) is a sophisticated composite reinforcement engineered to deliver both surface excellence and structural integrity in a single, integrated solution. By combining a fine surface veil layer with underlying chopped strand mat or stitched fiberglass plies, EMKP achieves a unique balance between aesthetic quality and mechanical performance.
The surface veil plays a critical role in creating a smooth, defect-free laminate finish, minimizing print-through, fiber bloom, and surface irregularities that commonly plague composite parts. This enhances the visual appeal and reduces the need for extensive post-processing or gel coat applications.
Beneath this veil, the robust chopped strand mat or stitched fiberglass layers provide the composite with high tensile strength, dimensional stability, and exceptional resin permeability, facilitating uniform resin flow during RTM (Resin Transfer Molding), Hand Lay-up, and related molding processes. The stitch-bonded construction improves laminate consolidation by preventing fiber migration and enhancing interlaminar bonding.
EMKP’s optimized architecture makes it ideal for manufacturing FRP panels, water tanks, sanitary ware, and corrosion-resistant components in demanding environments across the marine, construction, and industrial sectors. Its compatibility with polyester, vinyl ester, and epoxy resins ensures versatility and reliability in diverse composite fabrication workflows.
By integrating surface quality control with multi-layer reinforcement, the EMKP mat reduces cycle times, lowers repair rates, and guarantees consistent, high-quality finished parts—delivering value from tooling to end-use performance.
One roll is wrapped in plastic film and then placed into a carton or a large carton.
Normally, P4 (4 big rolls) or P7 (4 big rolls + 3 small rolls) or 6, 9, or 12 small rolls are packed per pallet horizontally/vertically. It can be customized based on the loading method.
Fiberglass products should be stocked in a dry, cool, and waterproof place. The best condition is with a temperature between 15-35℃, with a relative humidity between 30%-65%. Please keep the product in its original packaging before use, avoiding moisture.
Weitong currently operates over 30 fiberglass weaving machines for producing woven roving, along with various other equipment, including stitched mat machines, multiaxial tricot machines, PP core mat machines, and carding machines. Our annual production capacity reaches 3,000 tons of woven roving, 5,000 tons of stitched mat, 10,000 tons of multiaxial fabrics, 8,000 tons of combo mat, and 2,000 tons of RTM core mat.
Our team has already attended the China(Shanghai) International Composite Exhibition for 9 years, and JEC France, Composites Europe, and JEC Asia several times in France, Germany and Korea.
Backed by a highly skilled team of professional technicians, we have strong capabilities in developing and customizing specialized products to meet diverse customer requirements.
