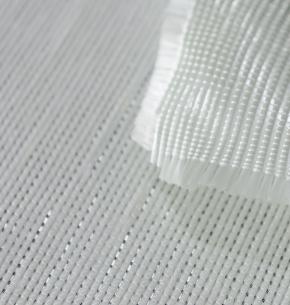

0/90 Degree Biaxial Fiberglass Fabric (0°, 90° LT) is a biaxial reinforcement with fibers stitched at 0° and 90°, offering excellent rigidity and load-bearing strength. It is ideal for composite molding, RTM, and structural applications.
Widely used in automotive, marine, wind energy, and aerospace industries, this fabric enhances stability and mechanical performance in lightweight composite structures.
Swipe or wait — images change automatically.
| Specification | Total weight (gsm) | Deviation (%) | 0°Degree(gsm) | 90°Degree(gsm) | Stitched Yarn(gsm) |
| LT600 | 610 | ±7 | 336 | 264 | 10 |
| LT800 | 810 | ±7 | 336 | 464 | 10 |
| LT600 | 610 | ±7 | 420 | 180 | 10 |
| LT800 | 810 | ±7 | 420 | 380 | 10 |
| LT1000 | 1110 | ±7 | 672 | 328 | 10 |
| LT1200 | 1510 | ±7 | 672 | 528 | 10 |
In laminated composites, fiber orientation defines the direction of load transfer. A 0/90° biaxial fabric provides stiffness and strength in two orthogonal directions, making it ideal for components subjected to:
▪ Axial loads (0° direction): tension/compression along the length
▪ Transverse loads (90° direction): bending or side forces
▪ Panel-like behavior: plates, shells, and frames needing multidirectional support
Unlike woven fabrics, which can suffer from crimp-induced stress concentrations, this biaxial stitched fabric delivers superior mechanical performance by maintaining straight, undisturbed fiber paths.
Excellent tensile and flexural properties in both longitudinal and transverse axes.
Ideal for structural panels and profiles requiring shape stability under load.
No binder or resin-inhibiting finish; rapid wet-out in RTM, vacuum infusion, or compression molding.
Non-crimp stitching retains fiber alignment, maximizing strength-to-weight ratio.
Works well with polyester, vinyl ester, and epoxy resin systems.
One roll is wrapped in plastic film and then placed into a carton or a large carton.
Normally, P4 (4 big rolls) or P7 (4 big rolls + 3 small rolls) or 6, 9, or 12 small rolls are packed per pallet horizontally/vertically. It can be customized based on the loading method.
Fiberglass products should be stocked in a dry, cool, and waterproof place. The best condition is with a temperature between 15-35℃, with a relative humidity between 30%-65%. Please keep the product in its original packaging before use, avoiding moisture.
