Fiberglass Multiaxial Fabrics

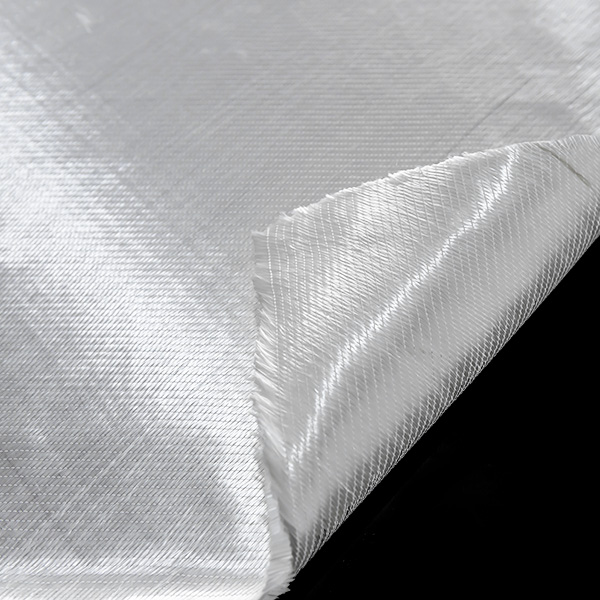

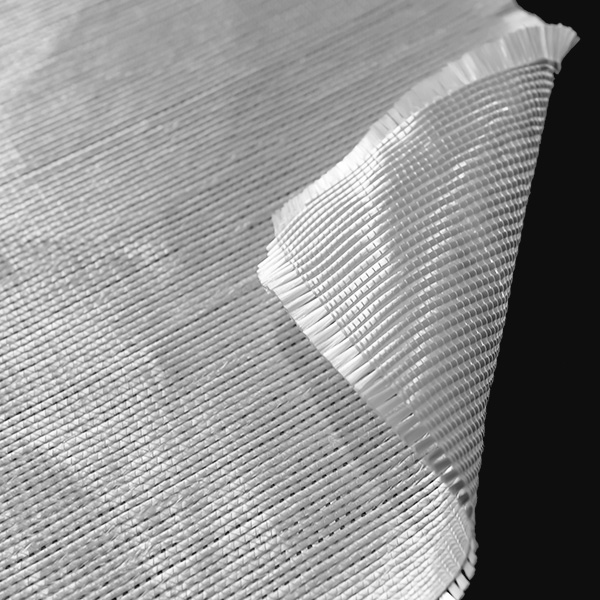

Multiaxial fabrics is a kind of multi-axis and multi-layered reinforcements. layer count, orientation, weight and fiber content of the layers vary based on product line and application via polyester yarn. fabrics can be produced using multiple axis(0’, 90°, +45°, -45°), or combined with chopped mat layer.Mainly used for Pultrusion,Hand lay-up,Filament Winding and RTM process,applied to wind energy,marine/ship building, recreation/leisure products, automotive, aerospace &defense etc.

Product Details

PROPERTIES

1.Increased strength, reduced product weight and better surface finish;

2.Orientated unidirectional layers are structurally more efficient;

3.Quicker to wet-out than woven fabrics;

4.Available in very heavy weights allowing faster deposition rates;

5.Binderless CSM can be added to further cut down on lay-up time and increase speed of wet-out;



SPECIFICATIONS

Specification

Total weight
(gsm)

0 degree
(gsm)

90 degree
(gsm)

45 degree
(gsm)

-45 degree
(gsm)

CSM
(gsm)

Stitching Yarn(gsm)

UDL550

550

420

120







10

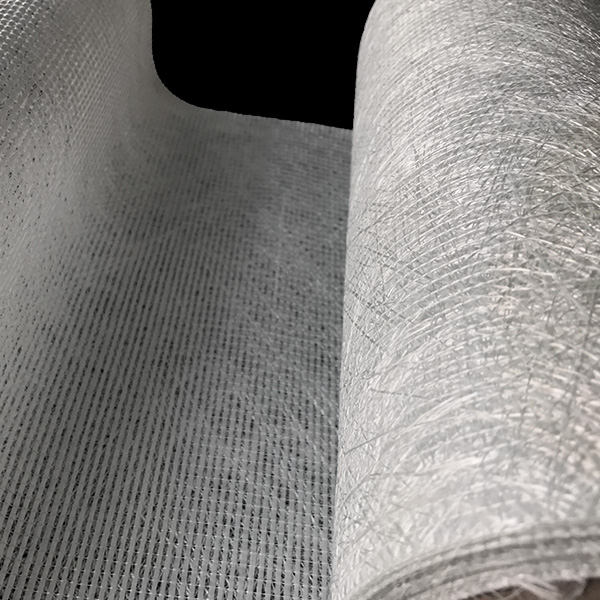

UDTM200/225

435



200





225

10

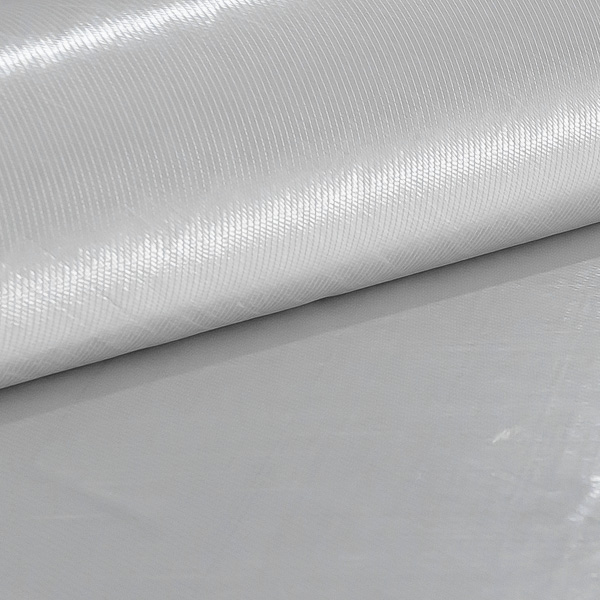

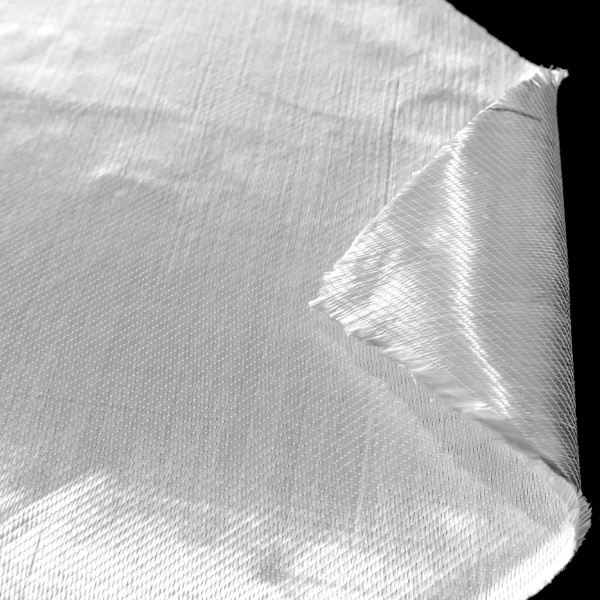

EBX400

407





200

200



7

EBX600

609





301

301



7

BXM600/225

832





300

300

225

7

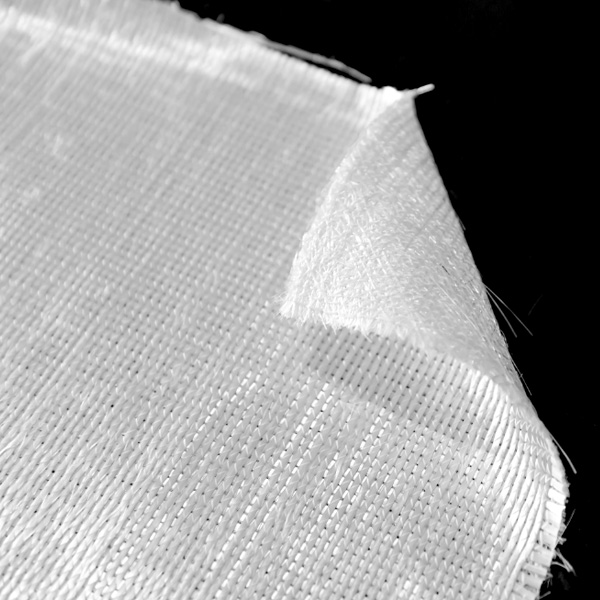

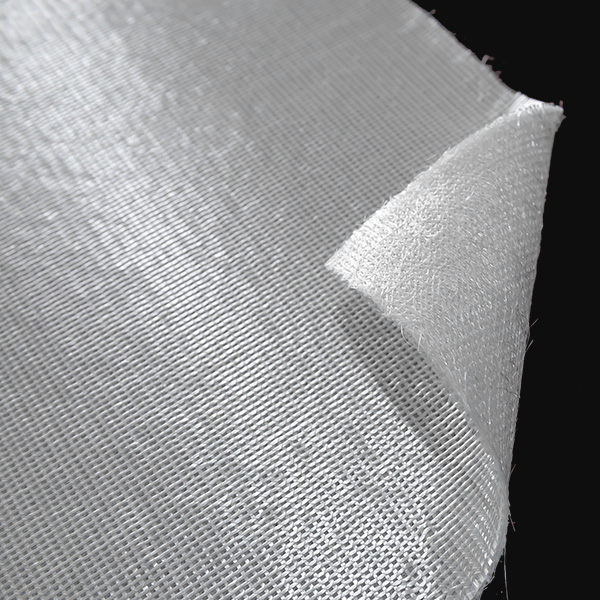

LTM600/300

910

336

264





300

10

LTM800/300

1110

420

380





300

10

LTM1200/300

1510

672

528





300

10

TLX1200

1214

567



320

320



7

QX800

808

283

118

200

200



7

QX1200

1207

576

124

250

250



7
